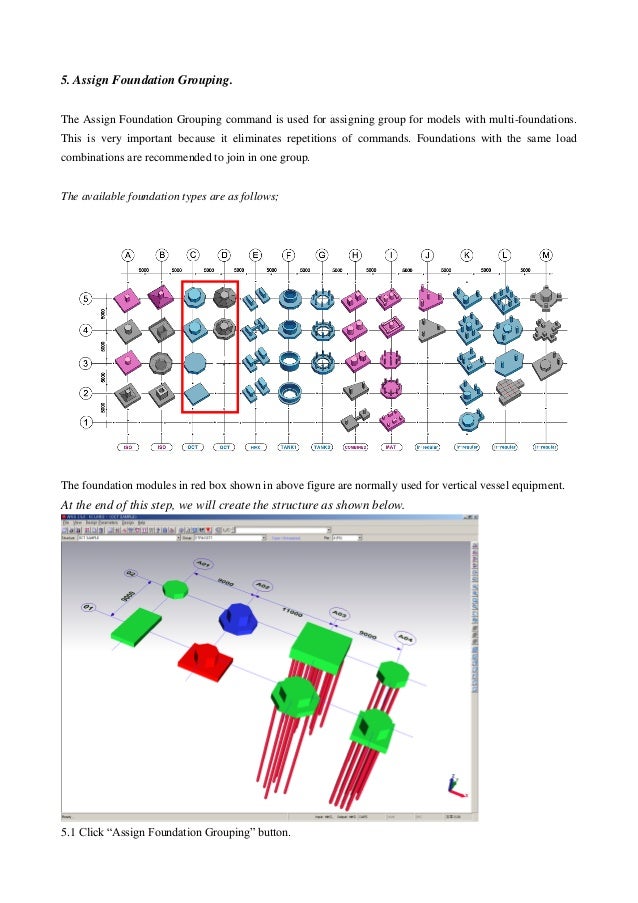

While believed to be accurate, the information contained herein should never be utilized for any specific engineering application without professional observance and authentication for its accuracy, suitability and applicability by a competent and licensed engineer, architect or other qualified professionals.ĪFES is a suite of proprietary computer programs of GS E&C. Unlicensed use of the program or reproduction of the documentation in any form, without prior written authorization from GS E&C, is explicitly prohibited. Worldwide rights of ownership rest with GS E&C. Using years of experience and accrued technology, AFES has been developed with the civil engineer in mind, which in turn provides the best automated tool for foundation design and analysis.The computer program AFES and all associated documentation are proprietary and copyrighted products. Stack Large Storage Tank, Ball Tank, Transmission Tower Vertical Vessel, Vertical Drum, Small Tank, Large Storage Tank Horizontal Vessel, Horizontal Drum, Heat Exchanger On-screen report generation with textual and graphicdal results.Įquipment Structure, Pipe rack, Derrick Structure Stress diagram for shear and moment along the user defined strips included. These can be customized according to client requirements. Supports soil and pile foundation with any unsymmetrical pile pattern.Īutomatic load calculation of wind and seismic factors for heat exchanger, column and tank.Įxtensive reporting functions included. Can design various foundation modules.Ĭreates footing geometry, load case and combination data through manual input or automatic import from ad structural analysis program. Supprots multiple unit systems for input and output. One project can handle multiple footing types. Various features to achieve maximum efficiency with minimum effort are include as follow With the absence of a one-stop commercial solution that can solve the above mentioned problems, AFES is the system that can produce all the foundation design data needed for the construction of foundations, quickly and economically. The shortness of work period for projects, frequent design changes of super structures, difficulties in assuming the size of foundations for site and the need to check interferences between footing, underground piping, and electrical cable trench, and coordination with other teams are some of the difficulties encountered during a project. Foundation design is usually done manually this entailing large manpower needs, which is uneconomical and in turn leads to dificulties in meeting quality requirements and deadlines.
